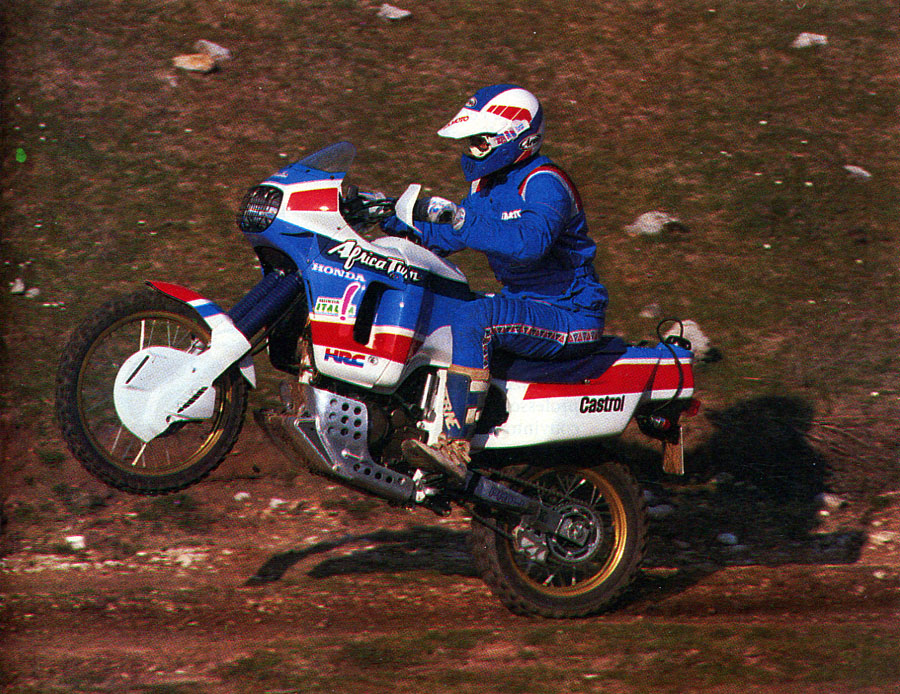

Microfiche of Honda Africa Twin
XRV 650 RD03 Marathon (second series) vs. RD03 standard.
* changes also common to the
first set of 88
# To check if also present in
the 1st series
|

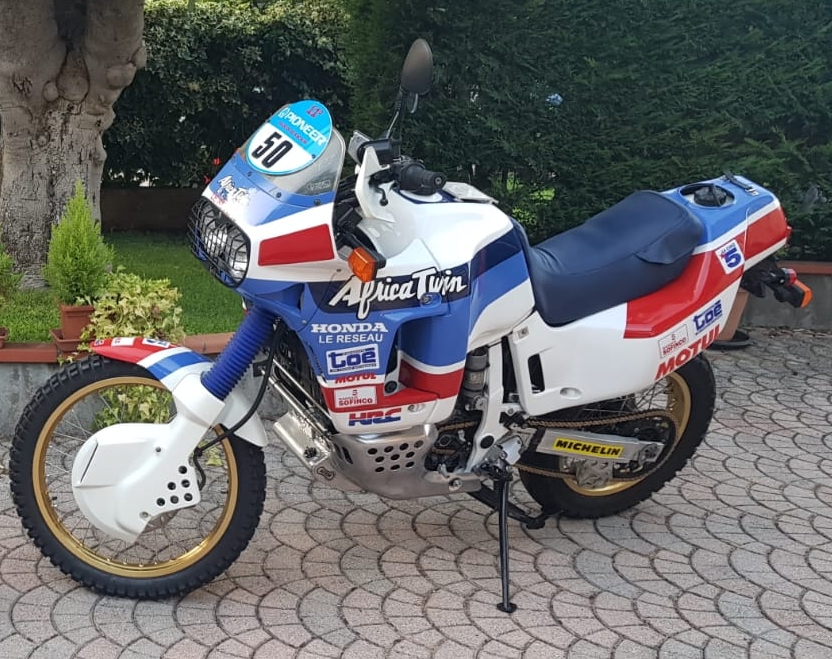

sx: XRV 650 RD03
->

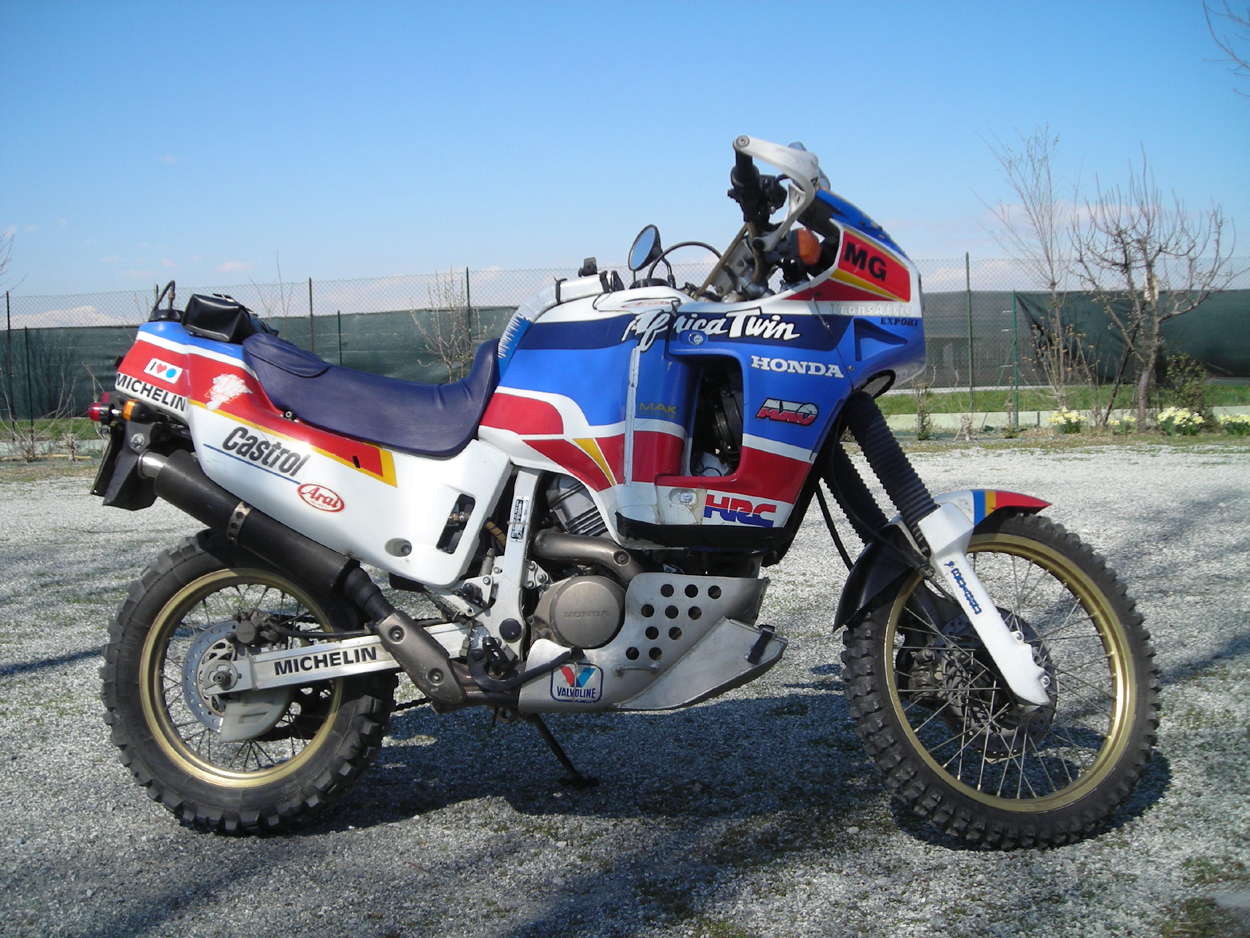

dx: Marathon '89
->
|

|
38/40lt main front tank,
it weights 2,5 kg more than the rd03 standard one
|
|
|
*4 threaded pins to
put a tool and documents bag on the tank
|


|


|
*16/17lt aluminium rear
tanks
|
|
|
* non-return valve on
each tank caps
|
|
|
# both tanks have bulkheads
in soft sponge-like to restrict the movement of petrol
|
|
|
* plastic side protection strips on tank
|
|
|
GRP rear side panels to protect the inner rear
tank
|
|
|
*instrumentation including
trip, compass and roadbook holder
|
|
|
# simplified main ignition |
|
.
|
built in sensor to kill engine in the event of a fall |
|
|
fan fuses, headlights and tail meter with more amperage |
|
|
# built in air ducts
|
|
.
|
reinforcing bar connecting the front side fairings |
|
|
* zipped rear seat access
for location beacon
|
|
.
|
adjustable rings (instead
of the first series plate) for attaching small luggage
|
|
.
|
*additional rally tail light |
|
|
opening for quick access to the air filter on the left side
cover
#airbox more protected
bigger air filter
|
|
|
*additional storage on protection plate
for water and tools |
|
|
two tabs on the protection plate to better protect feet and
levers |
 .
|
.
|
*Engine has less compression (9.0 instead
of 9.4) with thicker head gasket for low octane gasoline use.
Alternator 12V-360 W instead of 12V-310 W |
|
.
|
#Kehin VDF8A carburetors (instead of VDF4B).
Without enrichment capsule? |
|
.
|
Chafing between cylinders and air box |
|
.
|
* both radiators with fans
# additional radiator protection
|
|
 .
|
*forks reinforced with additional adjustment
|
.
|
.
|
reinforced shock (derived from XR?) with external regulation
and greater adjustment
|
|
|
* missing chain slide and attachments |
 .
|
.
|
*CR250-500 ('88-'89) rear chain guide |
|
.
|
*latch mechanism on snail fork to enable
easy wheel change/removal |
|
.
|
rear rim back to 2.50 instead of 2.75
rims are strengthened, the central rib is in fact more narrow
and pronounced
|
|
|
Hubs reinforced (on the right the standard
AT front one) |
|
|
* wider footpeg and modified
gear lever
|
|
 |
*Wider foot on side stand for use on soft
ground and no cut-off sensor |
|
|
# additional side stand
for right of bike to enable wheel change without centre stand
|


|


|
* front of fork guard
removed to quicken wheel removal without removing whole guard
|
|
.
|
* shortened front mudguard |
|
.
|
* reduced plate holder |
|
|
lock for the helmet (required for approval in Italy only) |
|
|
In Italy the Marathon was approved with 38 kw
instead 42, to operate only with the driver (but not all!) and
papers report the words FA.E Tipo Paris-Dakar
in France was approved as "version B"
to 40 kw, to operate only with the driver
|
|
|
chassis serial number that begins with 6 instead of 5 |
|
.
|

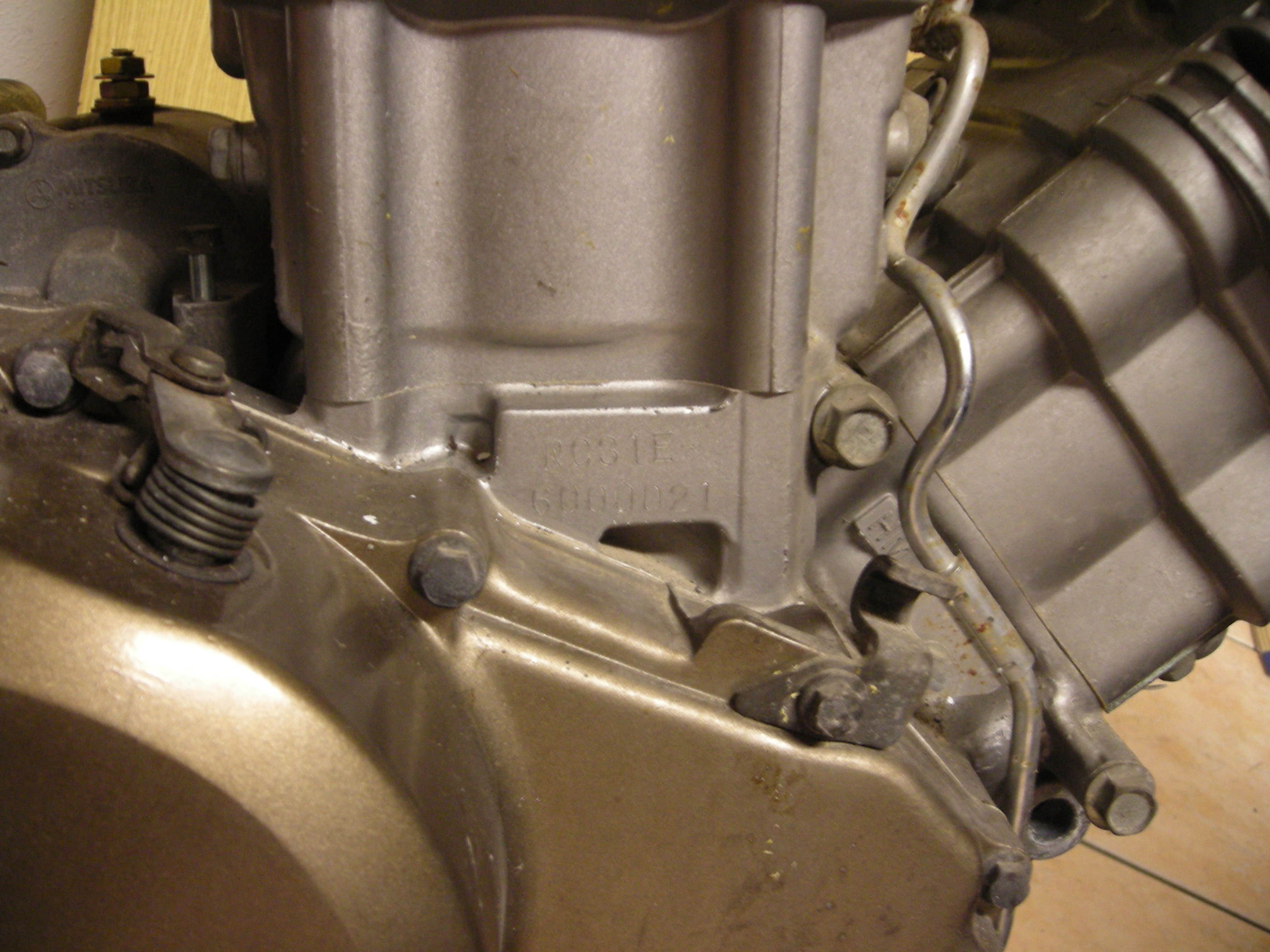

engine serial number starts with 6 instead of 5 |
|
.
|
# declared weight (in French homologation)
255 kg in running order |
|
..
|
Another small difference between French and Italian/Spanish versions:
white front mudguard on the French one, tri-colour as for the standard RD03 on the other versions |
|
|
|
|
|
